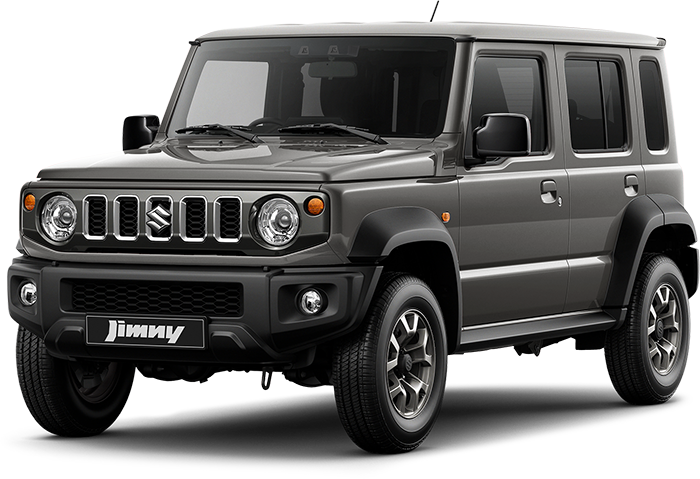

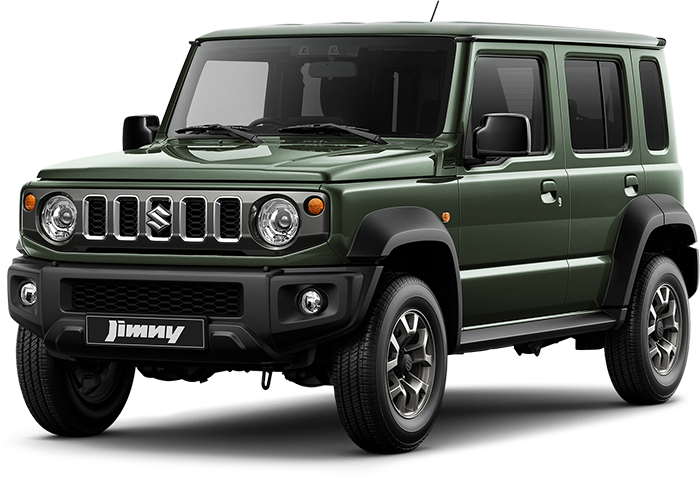

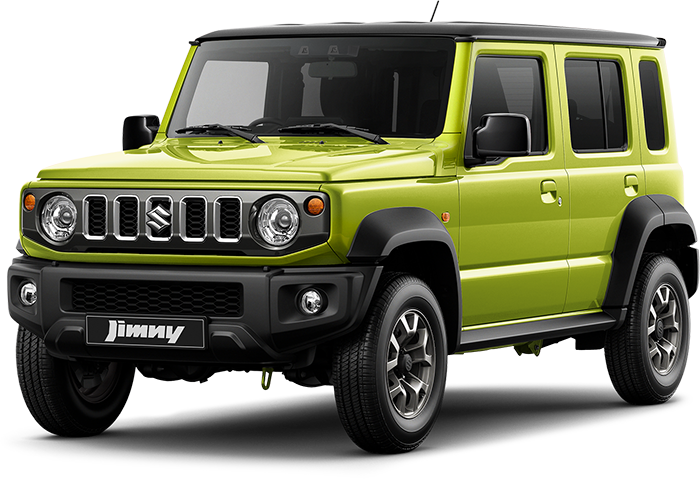

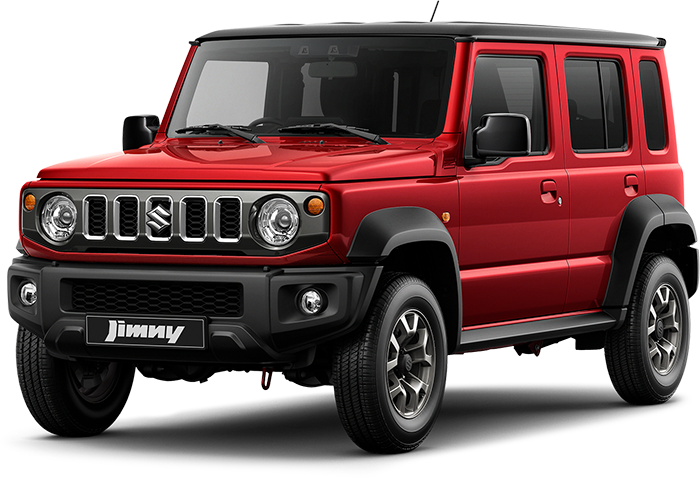

Jimny 5-Door Specifications
MANUAL
MANUAL TWO TONE
AUTO
AUTO TWO TONE
+
–
INFOTAINMENT
| SAT NAV | ||||
| Smartphone connected navigation | ||||
| AUDIO & MEDIA | ||||
| Android Auto™ | ||||
| Bluetooth® handsfree connectivity | ||||
| Four speaker system | ||||
| Touchscreen | ||||
| Tuner/MP3/WMA | ||||
| USB input | ||||
| Wireless Apple CarPlay | ||||
+
–
INSTRUMENT PANEL
| INFO DISPLAY | ||||
| Digital clock | ||||
| Outside temperature gauge | ||||
| Fuel display (instantaneous/average/range) | ||||
| Gear position indicator | ||||
| ALLGRIP driving mode indicator | ||||
| PANEL | ||||
| Tachometer | ||||
| Seatbelt reminder for all seating positions | ||||
| Lights-on and key reminder | ||||
| Fuel warning indicator | ||||
| Door ajar warning indicator | ||||
+
–
INTERIOR
| AIR-CONDITIONING | ||||
| Climate control air conditioning with pollen filter | ||||
| ENTRY & START | ||||
| Remote central door locking with hazard answer-back | ||||
| STEERING | ||||
| Leather steering wheel with cruise, limiter, phone & audio controls | ||||
| Tilt adjustable steering wheel | ||||
| Power steering | ||||
| DRIVE TRAIN | ||||
| Part time 4WD with low transfer gear | ||||
| SEATING | ||||
| 50:50 split-folding rear seats | ||||
| Rear seats with two locking positions | ||||
| Adjustable/detachable head restraints front | ||||
| Adjustable/detachable head restraints rear x 2 | ||||
| Assist grips x 3 | ||||
| UPHOLSTERY | ||||
| Cloth fabric | ||||
| CABIN LIGHTING | ||||
| 3 position lights on/off/door | ||||
| SUN VISOR & MIRRORS | ||||
| Sun visors | ||||
| Ticket holders both sides | ||||
| Day/night rearview mirror | ||||
| Vanity mirrors both sides | ||||
| STORAGE | ||||
| Front seatback pocket on passenger's side | ||||
| Front door storage pockets | ||||
| Glovebox | ||||
| Drink holders 2 rear | ||||
| LUGGAGE AREA | ||||
| Luggage area light | ||||
| POWER OUTLET | ||||
| 12V accessory socket front and rear | ||||
+
–
EXTERIOR
| FRONT | ||||
| Chrome accent grille | ||||
| SIDES | ||||
| Side under garnishes | ||||
| Wheel arch extensions | ||||
| REAR | ||||
| External tailgate opener | ||||
| ROOF | ||||
| Drip rails | ||||
| Two-tone | ||||
| Removable rubber aerial | ||||
| HEADLAMPS | ||||
| Auto light-sensing | ||||
| LED projector | ||||
| Headlamp washers | ||||
| Daytime running lamps | ||||
| FOG LAMPS | ||||
| Front fog lamps | ||||
| WINDOWS | ||||
| Electric windows | ||||
| Privacy glass (rear passenger and hatch) | ||||
| MIRRORS | ||||
| Electrically folding exterior mirrors | ||||
| Electrically adjustable exterior mirrors | ||||
| WIPERS | ||||
| Rear wiper and washer | ||||
| 2-speed with variable intermittent and washer | ||||
| Rear window demister | ||||
| WHEELS | ||||
| 15 inch alloy wheels | ||||
| Full size spare with half cover | ||||
+
–
SAFETY & SECURITY
| SAFETY | ||||
| 5 year extensive warranty programme (see Suzuki Warranty page for details) | ||||
| Electronic Stability Programme (ESP®) | ||||
| Adaptive cruise control | ||||
| 5 year roadside assistance | ||||
| Cruise control | ||||
| Speed limiter | ||||
| Dual Camera Brake Support | ||||
| Lane departure warning | ||||
| Weaving alert | ||||
| Side impact beams | ||||
| Collapsible steering column | ||||
| Brake decoupling mechanism | ||||
| Brake and clutch decoupling mechanism | ||||
| BRAKES | ||||
| Electronic Brakeforce Distribution (EBD) | ||||
| Hill descent control | ||||
| Shift lock and key interlock | ||||
| Brake assist | ||||
| Anti-lock Braking System (ABS) | ||||
| Hill hold control | ||||
| Brake LSD control | ||||
| Brake override system | ||||
| AIRBAGS | ||||
| Driver and passenger side airbags | ||||
| Front and rear curtain airbags | ||||
| SRS dual front airbags | ||||
| SEATBELTS | ||||
| Front 3-point ELR with pretensioners and force limiters | ||||
| Rear 3-point ELR x 2 | ||||
| Child seat tether anchorages x 2 | ||||
| ISOFIX child seat anchorages x 2 | ||||
| LIGHTING | ||||
| High mounted stop lamp | ||||
| Guide Me light | ||||
| PARKING | ||||
| Reverse camera | ||||
| Parking proximity sensors 4 rear | ||||
| SECURITY | ||||
| Engine immobiliser | ||||
+
–
DIMENSIONS
| Overall length (mm) | 3,820 | 3,820 | 3,820 | 3,820 |
| Overall length incl. spare wheel | 3,985 | 3,985 | 3,985 | 3,985 |
| Overall width (mm) | 1,645 | 1,645 | 1,645 | 1,645 |
| Overall height (mm) | 1,720 | 1,720 | 1,720 | 1,720 |
| Wheelbase (mm) | 2,590 | 2,590 | 2,590 | 2,590 |
| Tread Front (mm) | 1,395 | 1,395 | 1,395 | 1,395 |
| Tread Rear (mm) | 1,405 | 1,405 | 1,405 | 1,405 |
| Ground clearance (mm) | 210 | 210 | 210 | 210 |
| Minimum turning radius (m) | 5.7 | 5.7 | 5.7 | 5.7 |
| Approach angle (deg) | 36 | 36 | 36 | 36 |
| Ramp breakover (deg) | 24 | 24 | 24 | 24 |
| Departure angle (deg) | 47 | 47 | 47 | 47 |
+
–
WEIGHTS
| Kerb weight (min. kg) | 1,200 | 1,200 | 1,215 | 1,215 |
| Gross vehicle weight (kg) | 1,545 | 1,545 | 1,545 | 1,545 |
+
–
ENGINE
| Engine type | 1.5 L VVT K15B | 1.5 L VVT K15B | 1.5 L VVT K15B | 1.5 L VVT K15B |
| Number of cylinders | 4 | 4 | 4 | 4 |
| Number of valves | 16 | 16 | 16 | 16 |
| Piston displacement (cm3) | 1,462 | 1,462 | 1,462 | 1,462 |
| Bore x stroke (mm) | 74.0 x 85.0 | 74.0 x 85.0 | 74.0 x 85.0 | 74.0 x 85.0 |
| Compression ratio | 10:1 | 10:1 | 10:1 | 10:1 |
| Maximum output (kW@rpm) | 75/6,000 | 75/6,000 | 75/6,000 | 75/6,000 |
| Maximum torque (Nm@rpm) | 130/4,000 | 130/4,000 | 130/4,000 | 130/4,000 |
| Fuel distribution | Multipoint injection | Multipoint injection | Multipoint injection | Multipoint injection |
| Fuel type | 91RON or greater | 91RON or greater | 91RON or greater | 91RON or greater |
| C02 emissions NEDC (g/km) | 148 | 148 | 161 | 161 |
| C02 emissions 3P-WLTP conversion (g/km) | 165 | 165 | 179 | 179 |
| Fuel consumption NEDC (L/100 km) | 6.4 | 6.4 | 6.9 | 6.9 |
| Fuel consumption 3P-WLTP conversion (L/100 km) | 7.1 | 7.1 | 7.7 | 7.7 |
| Fuel consumption will vary due to factors such as vehicle condition, driving style and traffic conditions. |
+
–
TRANSMISSION
| Type | 5-speed manual | 5-speed manual | 4-stage auto | 4-stage auto |
| Drive system | ALLGRIP PRO 4WD | ALLGRIP PRO 4WD | ALLGRIP PRO 4WD | ALLGRIP PRO 4WD |
| Gear ratio 1st | 4.42 | 4.42 | 2.88 | 2.88 |
| Gear ratio 2nd | 2.3 | 2.3 | 1.57 | 1.57 |
| Gear ratio 3rd | 1.67 | 1.67 | 1 | 1 |
| Gear ratio 4th | 1.19 | 1.19 | 0.7 | 0.7 |
| Gear ratio 5th | 1 | 1 | ||
| Reverse | 5.15 | 5.15 | 2.3 | 2.3 |
| Final gear ratio | 4.09 | 4.09 | 4.3 | 4.3 |
| Transfer gear ratio high | 1 | 1 | 1.32 | 1.32 |
| Transfer gear ratio low | 2. | 2. | 2.64 | 2.64 |
+
–
CHASSIS
| Steering | Recirculating ball | Recirculating ball | Recirculating ball | Recirculating ball |
| Brakes Front | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
| Brakes Rear | Drum, leading and trailing | Drum, leading and trailing | Drum, leading and trailing | Drum, leading and trailing |
| Suspension Front | 3-link rigid axle with coil spring | 3-link rigid axle with coil spring | 3-link rigid axle with coil spring | 3-link rigid axle with coil spring |
| Suspension Rear | 3-link rigid axle with coil spring | 3-link rigid axle with coil spring | 3-link rigid axle with coil spring | 3-link rigid axle with coil spring |
| Tyres | 195/80R15 | 195/80R15 | 195/80R15 | 195/80R15 |
+
–
CAPACITIES
| Luggage capacity Rear seats folded (Litres VDA method) | 332 | 332 | 332 | 332 |
| Luggage capacity Rear seats raised (Litres VDA method) | 211 | 211 | 211 | 211 |
| Fuel tank capacity (Litres) | 40 | 40 | 40 | 40 |
| Towing capacity unbraked (kg) | 500 | 500 | 500 | 500 |
| Towing capacity braked (kg) | 1,300 | 1,300 | 1,300 | 1,300 |
| Seating capacity (persons) | 4 | 4 | 4 | 4 |
Standard and optional equipment available may vary from time to time. Suzuki New Zealand Ltd reserves the right to change without notice, prices, colours, materials, equipment, specifications and models, and also to discontinue models.
