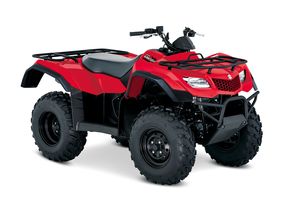

LT-F400F

KingQuad 400 Manual

The KingQuad 400 was extensively tested and refined on New Zealand farms and is equipped with an economical fuel-injected 376 cc motor. You will spend less time at the fuel pump and get more ‘k’s between fills.

Featuring a sealed and waterproof LCD digital instrumentation including speedometer, odometer, trip meter, clock, and fuel gauge. With long travel anti-roll suspension, a twin shock rear end and a low centre of gravity, the KingQuad provides you with all-day comfortable and a stable ride.

Other features include easy to use gate style shift control for easy selection of Hi, Lo and reverse plus a torque-sensing limited slip front diff, that will find grip where it’s needed, and selectable 2WD or 4WD, through the 5-speed manual transmission. Also standard are powerful front discs and enclosed rear drums delivering reliable, all-weather stopping and almost un-necessarily a large 16-litre fuel tank.

The 2017 KingQuad 400 4WD Manual is an ATV designed to meet New Zealand’s extremely tough farming conditions. New Zealand’s ideal farm ATV.

Wear it or Park it.jpg

$10,495 +GST

Specifications

Engine Type 4-stroke, air-cooled with SACS, SOHC
Engine Displacement (CC) 376
Bore x Stroke 82.0 mm x 71.2 mm
Transmission 5-speed forward + 1 reverse
Fuel System Fuel Injection
Starter System Electric
Overall Length (mm) 2160
Overall Width (mm) 1200
Overall Height (mm) 1220
Wheelbase (mm) 1270
Ground Clearance (mm) 250
Seat Height (mm) 840
Curb Mass (kg) 286
Suspension - Front Independent, double wishbone, coil spring, oil damped
Suspension - Rear Swingarm type, coil spring, oil damped
Brakes - Front Disc, twin
Brakes - Rear Drum
Tyre - Front AT25 × 8-12**, tubeless
Tyre - Rear AT25 × 10-12**, tubeless
Fuel Tank Capacity (L) 16

Features

  • High torque 4 stroke, 4 valve engine
  • Fuel-injection
  • 5 speed Manual transmission with Hi/Low and reverse
  • In-gear starting ability
  • 2WD/4WD handlebar control
  • Large 16 litre fuel tank
  • Comfortable T-shaped seat
  • Torque sensing limited slip front differential
  • High radius fenders and large front bumper
  • 30W multi reflector headlights
  • Full footboards provide ultimate protection
  • Downhill engine braking
